Aramid – ePTFE

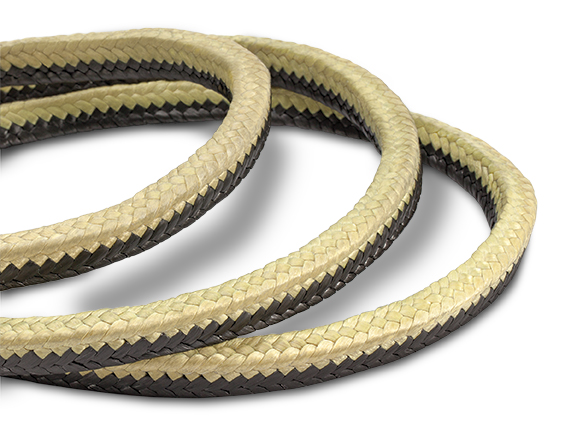

Chesterton DualPac™ 2211


Chesterton DualPac™ 2211 is built to address these issues by combining two complimentary materials in one packing. Using our patented braiding technology graphite filled ePTFE can be placed against the shaft where it provides superior sealing and low friction, and a high strength and resiliency aramid is placed against the stuffing box bore to resist consolidation without shaft wear.

Technical Data
MaterialsExpanded graphite PTFE filaments and durable aramid yarn
ApplicationsOre slurries, Mineral handling slurries, Dewatering, Most aggressive slurry applications
Pressure20 bar g (300 psig)
Speed10 m/s (2000 fpm)
Temperature260° C (500 ̊ F)
Chemical ResistancepH 4-1
